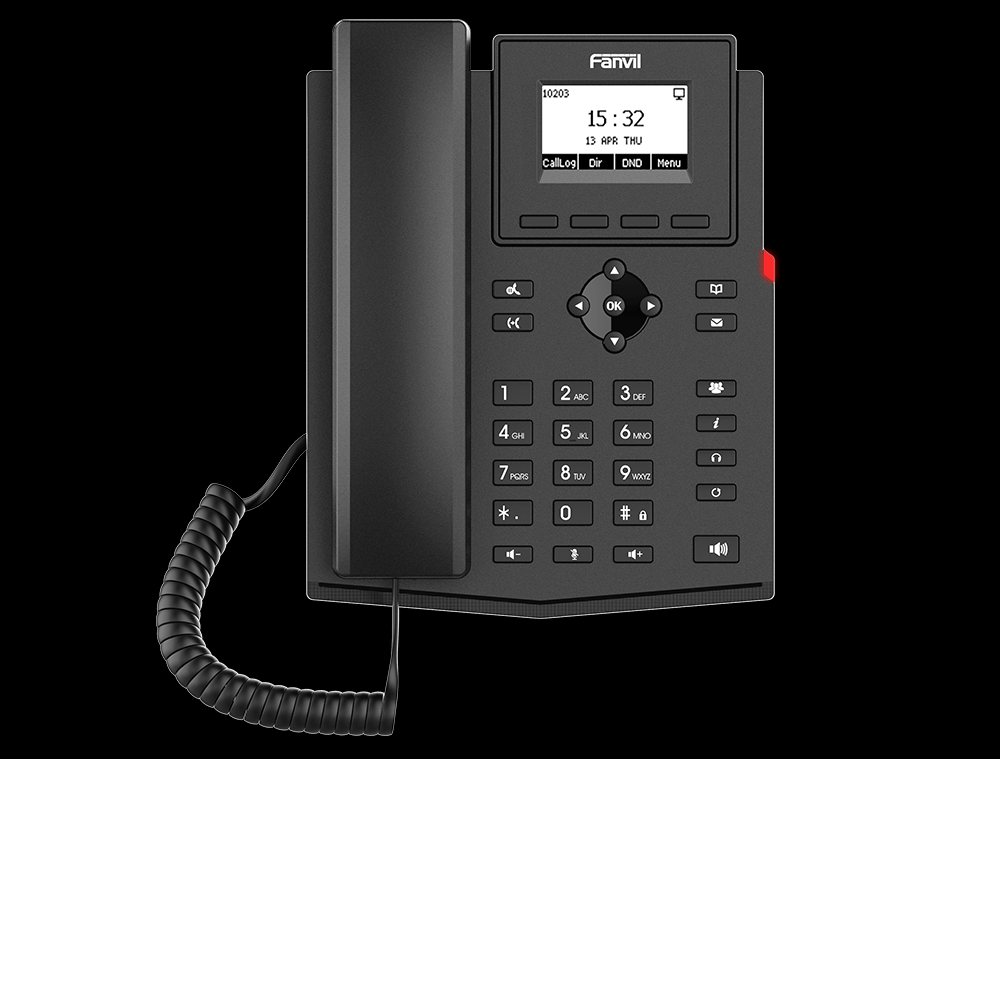

X301/X301P Entry Level IP Phone

X301/X301P Entry Level IP Phone Specification

Type
Entry Level IP Phone

Material
Plastic

Voice Mail
Yes

Use
Call Center, Office etc.

Screen
2.3 13264-pixel Graphical LCD with Backlight

Caller ID
Yes

DND Feature
Yes

Support
6 SIP Accounts

Button Type
Programmable Keys

Caller Transfer
Yes

Power
5V/1A Power Adapter or IEEE 802.3af PoE

Weight
0.68 kg

Color
Black

Interface
Yes

X301/X301P Entry Level IP Phone Trade Information

Minimum Order Quantity
2 Pieces

Payment Terms
Cash on Delivery (COD)

Sample Available
Yes

Packaging Details
Gift Box Dimensions: 250x220x55mm Outer CTN Dimensions: 460x300x270mm(10 PCS)

About X301/X301P Entry Level IP Phone

X301X301P Entry Level IP Phone Generic 2 SIP Lines HD Voice PoE Enabledonly X301P Dotmatrix display screen Handset Handsfree Headset mode Desktop Stand Wall mountable optional Optional External Power Supply Phone Functions Local Phonebook 1000 entries Remote Phonebook XMLLDAP 1000 entries Call logs InOutMissed 600 entries Blocked ListAllowed List Voice Message Waiting Indication VMWI Programmable DSSSoft keys Network Time Synchronization Support Poly wireless headset Through Poly APD80 EHS Cable Support Jabra wireless headset Through Fanvil EHS20 EHS Cable Support Recording Through Server Action URL Active URI uaCSTA Call Functions Call out Answer Reject Mute Unmute Microphone Call Hold Resume Call Waiting Intercom Caller ID Display Speed Dial Anonymous Call Hide Caller ID Call ForwardAlwaysBusyNo Answer Call Transfer AttendedUnattended Call ParkingPickup Depending on server Redial DoNotDisturb AutoAnswering Voice Message with server 6way Audio Conference Hot Line Hot Desking X301X301P is the costeffective SIP phone with multifunction It features a 23inch 128x48 pixel dotmatrix display supporting 2 SIP lines and 6way audio conference to render a userfriendly experience X301X301P has rich functions such as HD audio dual 10100 Mbps network ports and integrated PoEonly X301P providing an efficient and highquality business communication experience for enterprises Highlights 23inch 128x48 pixel dotmatrix display Support audio codec G722 and Opus HD audio on speakerphone and handset Support 6way audio conference Support EHS wireless headset Dual 10100 Mbps network ports integrated PoEonly X301P Two installation methods of desktop stand and wall mountable

Audio Wideband ADCDAC 16KHz Sampling Narrowband Codec G711au G7231G726G729AB iLBC Wideband Codec G722 Opus Fullduplex Acoustic Echo Canceller AEC Voice Activity Detection VAD Comfort Noise Generation CNG Background Noise Estimation BNE Noise Reduction NR Automatic Gain Control AGC Packet Loss Concealment PLC Dynamic Adaptive Jitter Buffer DTMF Inband OutofBand RFC2833 SIP INFO VQM voice quality monitoring Network Physical 10100 Mbps Ethernet dual bridged port for PC bypass IP Mode IPv4IPv6IPv4IPv6 IP Configuration Static IP DHCP PPPoE Network Access Control 8021x VPN L2TP OpenVPN VLAN LLDP QoS RTCPXR RFC3611 VQRTCPXR RFC6035 Protocols SIP20 over UDPTCPTLS RTPRTCPSRTP STUN DHCP IPV6 LLDP PPPoE 8021x L2TP OpenVPN SNTP FTPTFTP HTTPHTTPS TR069 AES128 AES256 Deployment Management AutoProvisioning via FTPTFTPHTTPHTTPSDHCP OPT66SIP PNPTR069 Web Management Portal Webbased Packet Dump Configuration Export Import Phonebook ImportExport Firmware Upgrade Syslog Physical Specifications LCD 128x48 pixel graphical LCD with backlight Keypad 33 keys including 4 Softkeys 9 Function keys HoldTransferVoice messageConferencePhonebook MWIHeadsetRedialHandsfree 4 Navigation keys 1 OK key 12 Standard Phone Digits keys 3 Volume Control keys UpDownMute Microphone Handset RJ9 x1 Standard RJ9 Handset Wire x1 15M CAT5E Ethernet Cable x1 Desktop Stand x1 Status Indicator Light x1 Red RJ9 Port x2 Handset x1 Headset x1 RJ45 Port x2 Network x1 PC x1 Bridged to Network Security Slot x1 DC Power Input 5V06A Power ConsumptionAdapter 08129W Power ConsumptionPoE 125186W Working Temperature 045 Working Humidity 1095 Installation Desktop Stand Wall mountable optional Color Black NWCTN 905kgX301 855kgX301P GWCTN 976kgX301 926kgX301P Device Dimensions Desktop Stand 45 169x2011x1774 mm Desktop Stand 50 169x1919x1858 mm Wall mountable 169x1201x2137 mm Gift Box Dimensions 250x220x55mm Outer CTN Dimensions 460x300x270mm10 PCS The above specifications may be updated in the future without prior notice All hardwaresoftwarephysical features should be based on the final shipped

Optimized for Workplace Efficiency

The X301/X301P IP Phone is tailored for high-demand environments like offices and call centers. With Quality of Service (QoS) and support for six SIP accounts, users can experience smooth and prioritized communication. The programmable keys allow team members to quickly access features, reducing downtime and ensuring seamless workflow.

Flexible Placement and Connectivity

This model supports dual Ethernet ports and offers both power adapter and IEEE 802.3af PoE options, making installation adaptable to varying network infrastructures. With a two-angle adjustable stand and wall-mounting capabilities, the phone easily fits diverse workspace arrangements, enhancing user comfort and accessibility.

FAQs of X301/X301P Entry Level IP Phone:

Q: How do I power the X301/X301P Entry Level IP Phone?

A: You can power the phone using a standard 5V/1A power adapter. For the X301P model, Power over Ethernet (PoE) is also supported, allowing power and network connectivity through a single Ethernet cable.

Q: What audio codecs are supported by the X301/X301P IP Phone?

A: The phone supports a wide range of audio codecs, including G.722, Opus, G.711a/u, G.723.1, G.729AB, G.726, and iLBC, which ensures superior call clarity and compatibility with various VoIP systems.

Q: When should I use the hands-free speakerphone feature?

A: The full-duplex speakerphone allows for hands-free communication during group discussions or multitasking situations, improving productivity in meeting rooms or busy office environments.

Q: Where can the X301/X301P phone be installed?

A: With a two-angle adjustable stand and wall mount capability, the phone can be conveniently positioned on desktops or mounted on walls to suit different workspace requirements.

Q: What is the process for setting up multiple SIP accounts?

A: You can configure up to six SIP accounts directly on the phones interface or through your system administrator, allowing seamless management of multiple lines or departments.

Q: What are the benefits of QoS support in this IP phone?

A: QoS (Quality of Service) support helps prioritize voice traffic over your network, reducing latency and ensuring clear, uninterrupted calls even during periods of high network usage.

Q: Does the X301/X301P support headset usage for call center environments?

A: Yes, the phone includes an RJ9 headset port, allowing agents to connect compatible headsets for hands-free calling and improved efficiency in call center operations.
