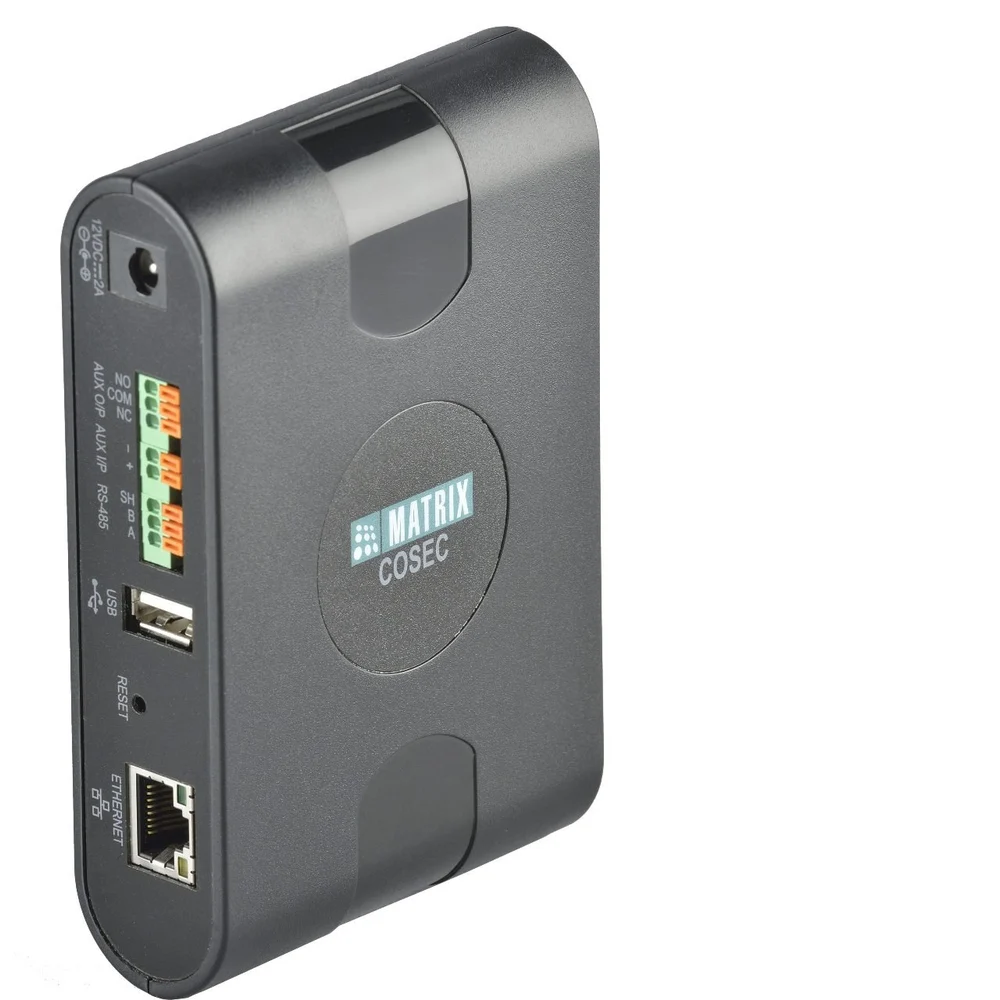

COSEC PANEL200P

COSEC PANEL200P Specification

Usage
Safety

Alarm
Yes

Color
Black

Material
Plastic

Product Type
Biometric Controllers

Warranty
1 Year

COSEC PANEL200P Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD)

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

Packaging Details
Dimensions (L x H x D) 125.25mm X 81.5mm X 30.5mm (4.93 x 3.20 x 1.20) Weight 140gm (0.308 lbs) Enclosure material ABS V0 grade

About COSEC PANEL200P

COSEC PANEL200P Standalone Mode Access Control for Single Location Maximum Door Controllers 255 Door controller on RS-485 32 Max User Capacity 25,000Event Buffer 5,00,000 Wi-Fi Inbuilt Wi-Fi Module (IEEE 802.11 b/g/n) Inbuilt Bluetooth YES Ethernet YES (10/100 Mbps) RS-485 YES USB One USB Port (For data transfer and 2G-3G-4G /WiFi Dongle) SD Card YES (8 GB) Aux-In YES (4 states - short, open, activated & non-activated) Aux-Out Form C and SPDT Relay CPU Cortex A8 800 MHz Flash memory 256 MB RAM memory 256 MB (DDR3 SDRAM @ 800MHz) Operating system Linux based OS Communication Port Ethernet & RS-485 Tamper Detection YES RTC YES LED Tricolor LED (Power, Status & Alarm) Buzzer YES (12V) Operating Temperature -10C to +55C (14F to 131F) Humidity 5% to 95 % RH Non-Condensing
